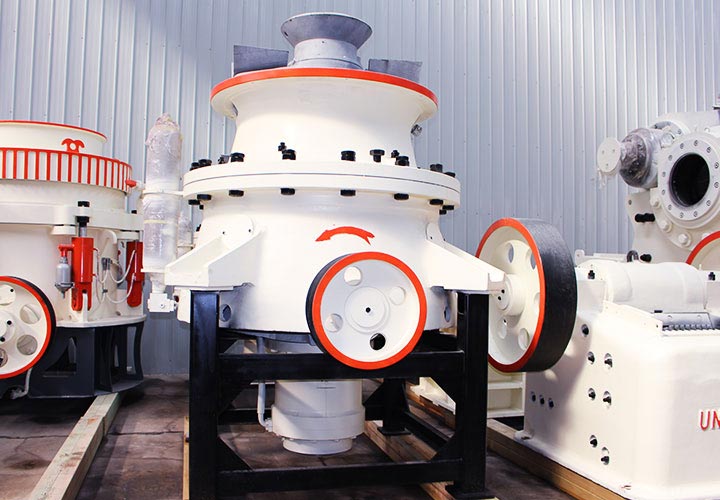

Single Cylinder Cone Crusher

small, medium and large models are in stock available

Feeding Size: 38-560mm

Processing Capacity: 70-2181t/h

Availability:

Quantity:



Inquire Add to Basket

Product Description

Some Basic Information of Single-cylinder Cone Crusher

single cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium,construction,water and electricity,transportation,chemistry and building material industry.Especially in the metal ore and construction of sand and gravel material is the most widely used.

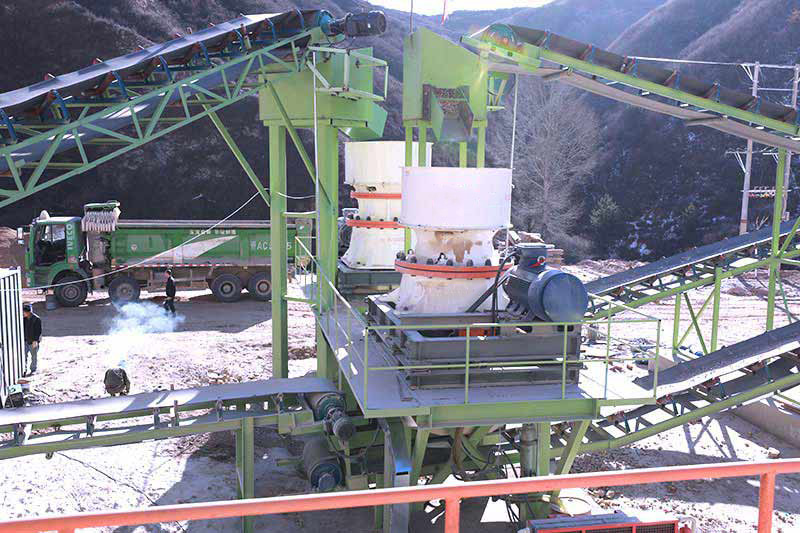

20211229164926_5627

The Main Features of Single-cylinder Cone Crusher

1.stable performance and Less failure

2.Compact structure and easy maintenance

3.Overload protection and good bearing lubrication

4.High efficiency,35% ~ 60% higher than spring cone crusher

5.Just replacing fixed cone can achieve various cavity shapes for fine crushing

6.Good quality final material,increas the cube proportion and uniform grain,reduce flake stone needles

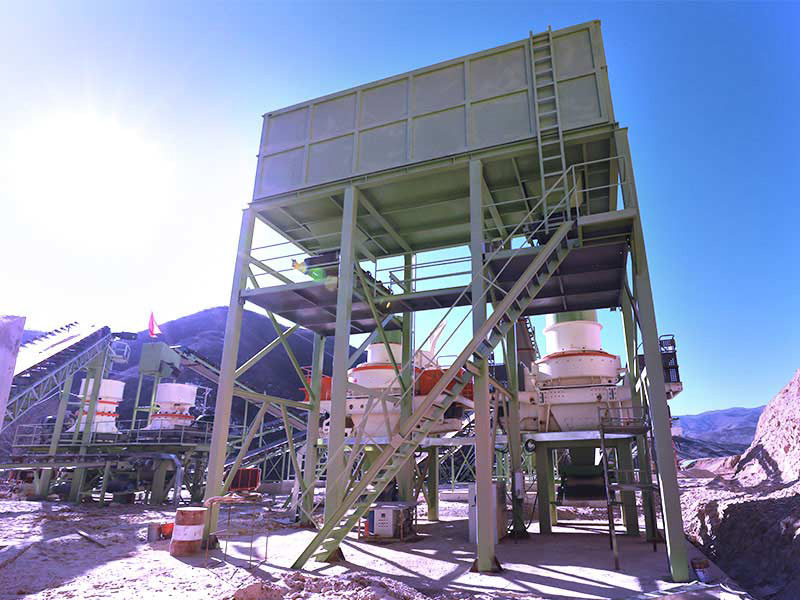

20211229164958_5001

The Working Principle of Single-cylinder Cone Crusher

The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom.

Model	Cavity Type	Maximum feed inlet Size (mm)	Minimum Discharge Opening (mm)	Capacity (t/h)	Maximum installed power (kw)
SH420	S1 Extra coarse	240	22	85-170	90
SH420	S2 Medium coarse	200	19	70-130
SH420	H1 Fine	135	10	45-130
	H2 Medium fine	65	8	35-80
	H3 Extra fine	38	4	27-60
SH430	S1 Extra coarse	360	25	120-345	160
	S2 Medium coarse	300	22	105-305
	S3 Extra coarse	235	19	90-275
SH430	H1 Fine	185	13	60-210
	H2 Medium fine	90	10	65-165
	H3 Extra fine	50	6	48-105
SH440	S1 Extra coarse	450	35	255-605	250
	S2 Medium coarse	400	29	215-515
	S3 Extra coarse	300	25	190-490
SH440	H1 Fine	215	16	110-395
	H2 Medium fine	110	13	115-340
	H3 Extra fine	70	8	90-225
SH660	S1 Extra coarse	560	41	355-1050	315
SH660	S2 Medium coarse	500	38	305-895
SH660	H1 Fine	275	16	170-665
	H2 Medium fine	135	16	190-505
	H3 Extra fine	65	13	205-320

Coarse cone crusher technical parameters

Model	SH420			SH430			SH440			SH660
Cavity type		S1(Extra coarse)	S2(Medium coarse)	S1(Extra coarse)	S2(Medium coarse)	S3(Coarse)	S1(Extra coarse)	S2(Medium coarse)	S3(Coarse)	S1(Extra coarse)	S2(Medium coarse)
Closed side outlet size	19		70			90
	22	85	75-95		105	95-125
	25	90-115	80-130	120	115-145	105-170			190
	29	100-160	90-115	135-175	125-200	115-220		215	205-270
	32	105-170	95	140-230	130-255	120-235		230-300	220-345
	35	110-145		150-295	140-270	125-250	255	245-385	230-435
	38	115		160-310	145-285	135-265	270-355	260-485	245-465		305
	41			170-330	155-305	140-275	285-450	270-515	260-490	335	320-420
	44			175-345	165-265	150-245	300-565	285-450	270-430	350-460	340-620
	48			190-310	175	160	320-605	305-400	290-380	375-590	360-755
	51			195-260			335-525	300	305	390-720	375-790
	54			205			350-460			410-860	395-825
	60									445-930	425-895
	64									465-980	450-825
	70									500-1050	480-635
	76									535-985

Fine cone crusher technical parameters

Model		SH420			SH430			SH440			SH660			SH870			SH890
Cavity type		H1(Fine)	H2Medium fine	H2(Extra fine)	H1(Fine)	H2Medium fine	H2(Extra fine)	H1(Fine)	H2Medium fine	H2(Extra fine)	H1(Fine)	H2Medium fine	H2(Extra fine)	H1(Fine)	H2Medium fine	H2(Extra fine)	H1(Fine)	H2Medium fine	H2(Extra fine)
Closed side outlet size	4			27-35
	6			30-50			48-80
	8		35-45	31-55			50-85			90-135
	10	45	38-75	32-80		65-85	53-90			95-180									364-420
	13	50-85	40-80	35-50	68-110	70-135	56-100		115-190	100-195			205-295			280-405			395-532
	16	52-95	45-75	38	75-150	75-145	60-104	110-200	120-280	110-120	170	190-295	220-320			304-517			426-574
	19	58-100	50-60		80-165	80-155	65-105	120-280	100-300	115-225	185-340	205-440	235-300		400-563	328-558			458-616
	22	60-105			85-175	85-165	70-95	125-295	140-320	125-240	195-440	215-470	250--290	448-588	428-786	352-598		552-613	489-658
	25	63-115			90-185	90-155	75	135-315	150-340	135-255	210-465	230-500		477-849	455-836	376-639	480-640	587-1043	520-700
	32	75-130			100-210	100		155-360	170-285	150-210	235-550	265-505		544-968	519-953	400-680	547-1277	669-1189	593-798
	38				110-210			170-390	185		260-605	290-405		601-1070	573-1054	455-775	605-1411	739-1314	655-882
	44							185-385			285-665			658-1172	628-1154	503-728	662-1546	810-1440	718-883
	51										315-515			725-1291	692-1271	551-669	730-1702	892-1586	790
	57													782-1393	746-1372		787-1837	962-1604
	64													849-1512	810-1248		854-1994	1045-1393
	70													906-1331	865-1098		912-2128	1115
