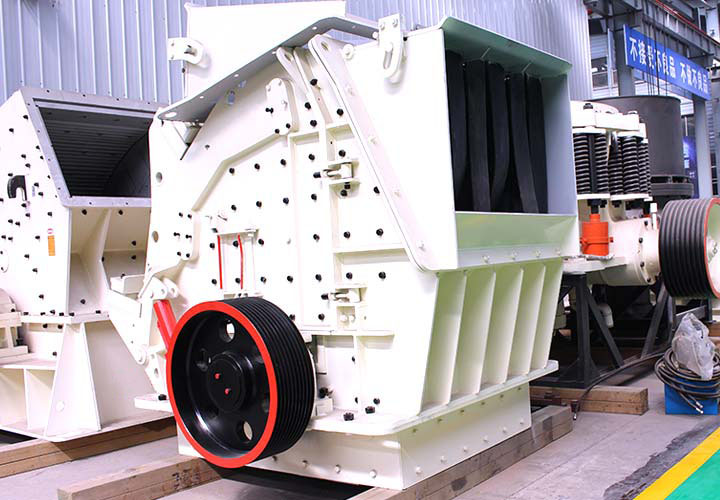

The impact crusher is named according to its working principle. It uses the principle of "stone hitting iron" to crush materials. It is a kind of crushing equipment that is finer than the jaw crusher. It is mainly used in the stone production line.
In medium and fine crushing operations, cooperate with jaw crusher for crushing. It has the advantages of large crushing ratio and cubic particles after crushing. It is widely used in building materials, ore crushing, transportation, energy, chemical industry and other industries for medium and fine crushing materials. The size of the discharge particles can be adjusted and the crushing specifications are diversified.
Wide adjustment range and diversified crushing specifications
The impact crusher can adjust the size of the discharged particles by adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber, etc., so as to realize the diversification of crushing specifications.
Energy saving and stable operation
Large feed inlet, high crushing cavity, complete crushing function, high production efficiency, stable output, energy saving and high yield.
Simple structure, easy maintenance
There are only 6 impact blow bars installed on the rotor of the impact crusher, and the blow bars can be easily replaced with special designed tools.
Consumable parts wear less and have a long service life
The wear of the blow hammer of the impact crusher only occurs on the side facing the material. When the rotor rotates, the material will fall to the surface of the blow hammer (strike surface). The back and side of the blow hammer will not be worn, even if it faces the material. There is also very little wear to the side of the material.
Dear, there are 3 ways for you to get the price list or quotation asap.
1. Leave your requirement to us on the message board.
2. Contact the online customer service.
3. Send an email to sales@shibochina.com
| Model | Feed Opening Size(mm) | Max Input Size(mm) | Capacity(t/h) | Power(kw) | Weight(kg) |
| LF150 | 820X980 | ≤500 | 100-200 | 90-200 | 12000 |
| LF250 | 960X1360 | ≤700 | 200-400 | 180-250 | 17000 |
| LF350 | 1050X1700 | ≤800 | 300-500 | 200-400 | 24000 |
| LF450 | 1350X1950 | ≤900 | 350-580 | 220-440 | 29600 |
