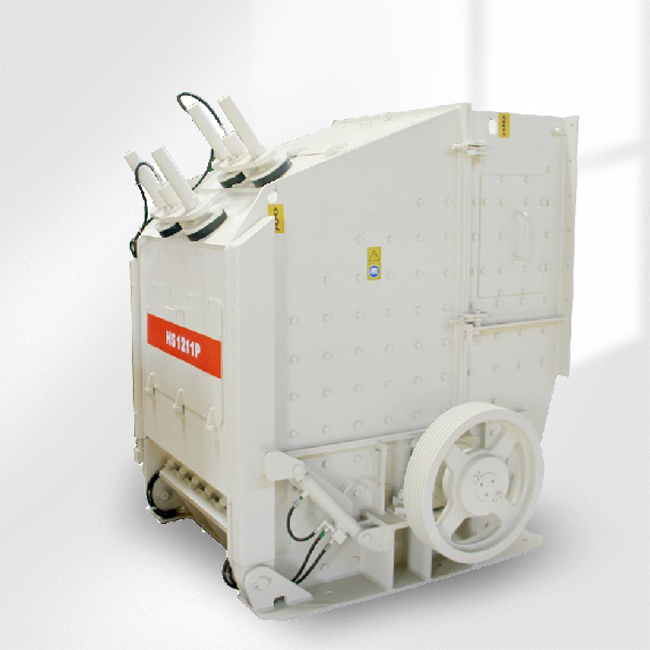

HS impact crusher

HS impact crusher series is the up-to-date generation product. 20 years manufacturing experience, hundreds of practical applications and the usage of most advanced impact crusher technology make the impact crusher featuring international advanced level quality.

HS impact crusher series is widely used in primary, secondary or tertiary crushing of medium hard and low abrasive rock. The chrome alloy hammers and liners could be used for crushing of hard and abrasive rocks.

Availability:

Quantity:



Inquire Add to Basket

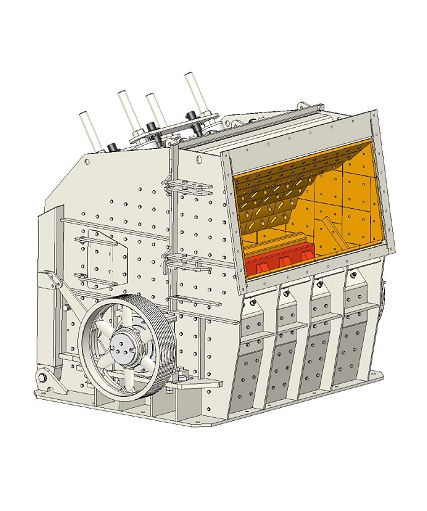

HEAVY ROTOR AND HAMMER SEAT

Due to the design of heavy rotor and hammer seat, huge rotary inertia and impact crushing lead to larger reduction ratio and better shape of the end product. The hammer lock is simple and reliable, and easy mounting.

BOAT SHAPE HAMMERS

Boat shape hammers are matched with the wearing profile that extend its life and assuring a stable discharge gradation. The rotor connection faces with hammers are machined to avoid crack.

VARIOUS MECHANICAL SAFETY DEVICES

Various mechanical safety devices are designed for the safety of the people,the hydraulic system is easier for the CSS setup and maintenance, so as to increase the efficiency.

HS impact crusher

Get A Free Quote

Model	Feed Opening（mm）	Feed Max（mm）	Rotor Dia（mm）	Rotor Length（mm）	Max.Rotation（rpm	Horsepower（kW）	Weight（kg）
HS1208P	790×900	600	1150	760	600	90-132	8800
HS1211P	1170×1100	800	1150	1140	600	110-160	13760
HS1311P	1170×1200	800	1300	1140	550	132-200	18250
HS1315P	1550×1200	900	1300	1520	550	160-250	22650
HS1319P	1930×1200	1000	1300	1900	550	200-315	26200
HS1519P	1930×1500	1200	1500	1900	450	2×220	47600
HS1523P	2310×1200	1300	1500	2300	450	2×250	57000
HS1823	2310×1660	1300	1800	2300	400	800	68500
HS2023P	2310×1800	1500	2000	2300	350	1120	95800
HS2027P	2700×1800	1500	2000	2660	350	1420	115600
79HS1208S/SH	790×810	500	1150	760	700	90-132	8950
HS1211S/SH	1170×810	500	1150	1140	700	110-160	13680
HS1311S/SH	1170×815	600	1300	1140	650	132-200	17500
HS1315S/SH	1550×815	600	1300	1520	650	160-250	19600
HS1319S	1930×815	600	1300	1900	650	200-315	21100
HS1323S	2310×815	600	1300	2300	650	2×160	27500
HS1523S	2310×910	700	1500	2300	550	2×250	42950
HS1527S	2700×910	700	1500	2660	550	2×315	44500
HS1630S	3070×917	700	1600	3040	500	710	52650
