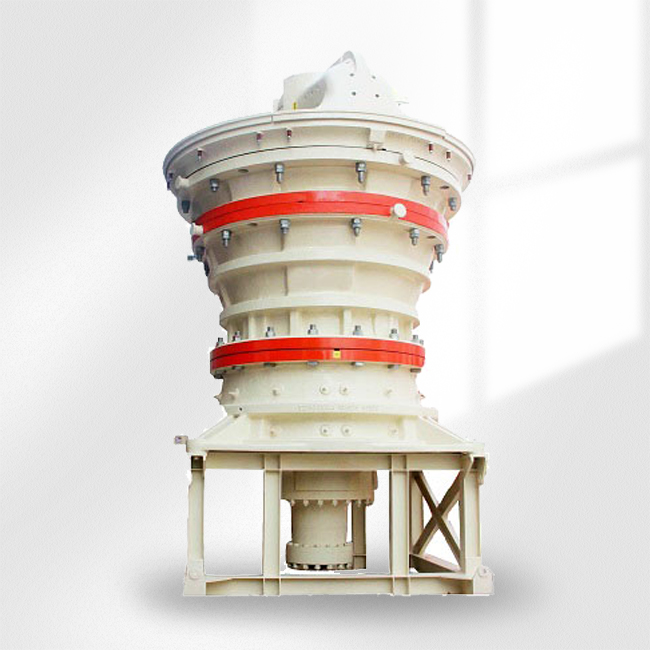

GC gyratory crusher

he GC series gyratory crusher is an advanced crusher at present, suitable for the primary crushing of various rocks and ores, features as follows: large capacity, high crushing efficiency, larger reduction ratio, consistent product size, lower consumption, etc, fit for the application of larger capacity.

When OSS at 150mm, the pass through rate is 90% while crushing soft rock.

Select product curve(work index) from above and product size distribution is as follows.

Availability:

Quantity:



Inquire Add to Basket

Brand:
ZCJK

BALANCE DESIGN

Due to the balance design, the crusher impact force is less, make crushing more reliable and stable, during operating

IMPACT BODY DESIGN

With impact body design of mainshaft and mantle, to avoid the loose mantle during the operation.

MODULAR DESIGN

With the modular design, lubrication and hydraulic system, work indepently. PLC will have interlock with main motor , protection over oil temperature, flow, pressure, power abnormal current.

GC gyratory crusher

Get A Free Quote

Model	Power（kW）	Eccentric Distance( mm )	Oper Speed（rpm）	Weight（t）	Feed Opening（mm）	Max Opening（mm）	Open Side Settings（mm）	Capacity（t/h）
GC4265	400	25,32,38	178	119	1065	900	140-175	1635-2320
GC5065	400	25,32,38	178	145	1270	1050	150-175	2245-2760
GC5475	450	25,32,41	157	242	1370	1180	150-200	2555-3385
GC6275	500	25,32,41	157	303	1575	1350	150-200	2575-3720
GC6089	630	25,32,35,38.46	149	387	1525	1300	165-230	4100-5550
GC60110	1000	25,32,35,38,46,51	149	556	1525	1300	175-250	5575-7605

Model	Power（kW）	Eccentric Distance( mm )	Oper Speed（rpm）	Weight（t）	Feed Opening（mm）	Max Opening（mm）	Open Side Settings（mm）	Capacity（t/h）
GC4265	400	25,32,38	178	119	1065	900	140-175	1635-2320
GC5065	400	25,32,38	178	145	1270	1050	150-175	2245-2760
GC5475	450	25,32,41	157	242	1370	1180	150-200	2555-3385
GC6275	500	25,32,41	157	303	1575	1350	150-200	2575-3720
GC6089	630	25,32,35,38.46	149	387	1525	1300	165-230	4100-5550
GC60110	1000	25,32,35,38,46,51	149	556	1525	1300	175-250	5575-7605
