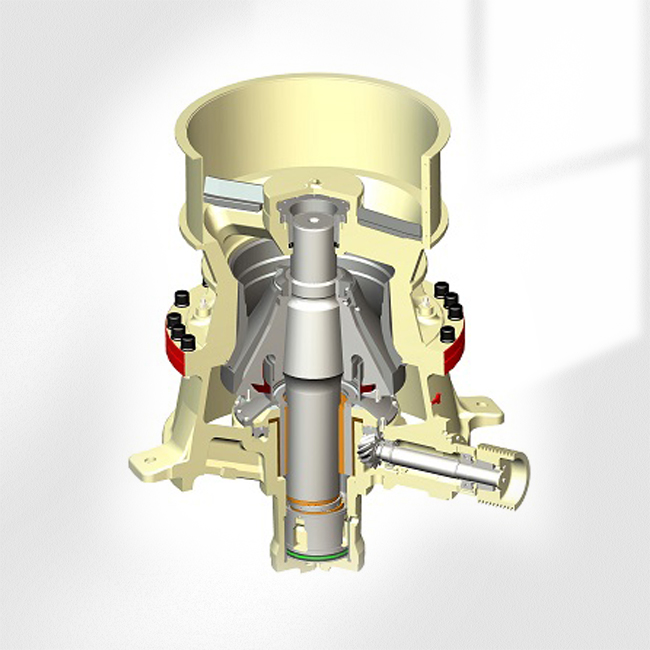

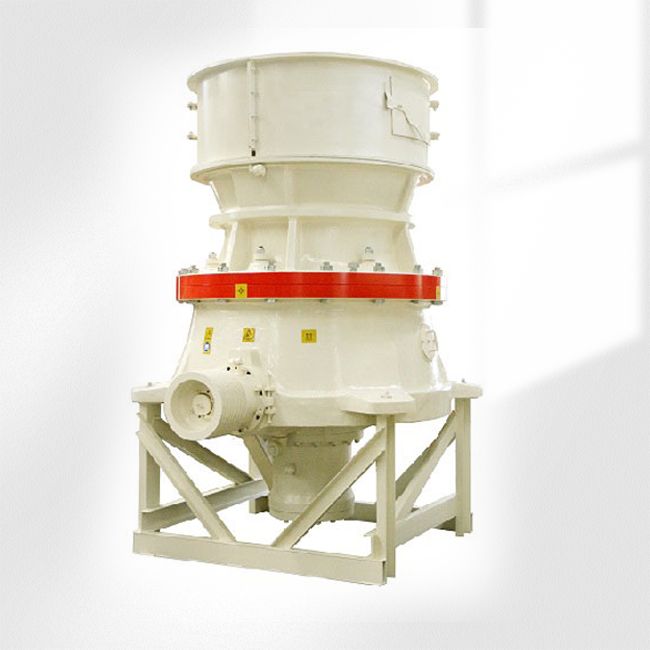

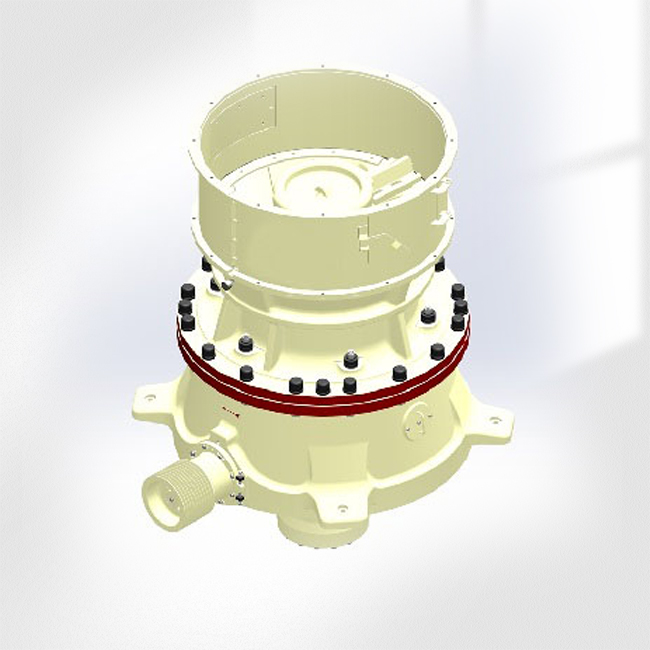

CC cone crusher

CC Cone crusher is successfully developed by ZCJK through introduction of foreign advanced technology and research findings. It is widely used in various hard and abrasive rock conditions.

Due to the modular design of independent lubrication system and hydraulic system, the crusher can obtain the protection function of hydraulic oil temperature, flow, pressure, and abnormal prow, with the linkage to main motor starter control.

Availability:

Quantity:



Inquire Add to Basket

PINION SHAFT AND SPIRAL GEAR

Bevel and pinion gears can keep the crusher with big torque and high efficient transmission.

ECCENTRIC INTERCHANGABLE

To meet the requirement of different mining applications, a combination of eccentric bushing and eccentric is easily adjusted.

AUTORUN REGULATION

Overload protection, tramp iron protection, wearing plate auto compensation and choke feeding make the efficiency of the cone crusher up to maximum.

OVERLOAD PROTECTION SYSTEM

The damage caused by overloading can be reduced through hydraulic and electrical protection system.

CC cone crusher

Get A Free Quote

Model	Oper Speed(rpm)	Strokes(mm)	Power(kW)	Weight(kg)
CC100S	360	16-25	90	8500
CC200S	340	16-30	160	14100
CC300S	285	20-36	250	23500
CC400S	258	20-40	315	40000
CC500S	240	30-55	450	58500
CC100	395	13-28	90	7200
CC200	360	16-36	160	12600
CC300	320	16-44	250	20000
CC400	290	18-50	345	32000
CC500	288	30-68	450	48000
CC600	280	32-80	630	67000
CC800	230	24-70	750	98000
CC800T	230	48-70	750	101000

Model	Oper Speed(rpm)	Strokes(mm)	Power(kW)	Weight(kg)
CC100S	360	16-25	90	8500
CC200S	340	16-30	160	14100
CC300S	285	20-36	250	23500
CC400S	258	20-40	315	40000
CC500S	240	30-55	450	58500
CC100	395	13-28	90	7200
CC200	360	16-36	160	12600
CC300	320	16-44	250	20000
CC400	290	18-50	345	32000
CC500	288	30-68	450	48000
CC600	280	32-80	630	67000
CC800	230	24-70	750	98000
CC800T	230	48-70	750	101000
